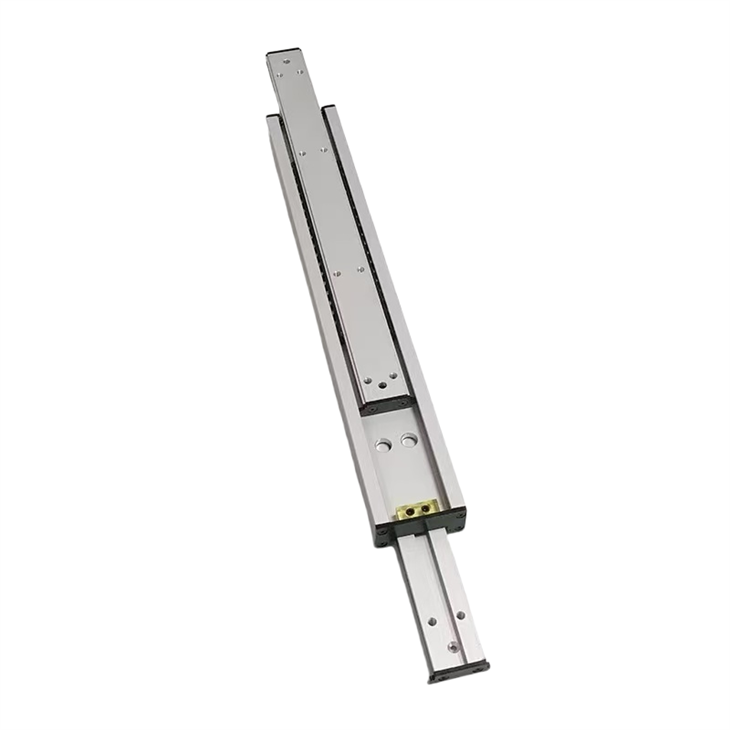

90mm Wide Aluminum Steel Guide Rails

HA90A Heavy-Duty Telescopic Slide Rails

HA90A series represents our top-tier industrial-grade telescopic slides, engineered for extreme loads and harsh environments. With a 1,000kg dynamic load capacity, these 3-section rails combine steel-aluminum alloy construction (90mm width × 46mm thickness) with advanced corrosion resistance, making them ideal for CNC machinery, medical equipment, and heavy-duty workstations.

Ultra-Durable Design: 3.5mm thickened steel-reinforced panels ensure structural integrity under repetitive use.

: Precision ball bearings with dustproof seals (IP54 rating) prevent sand/debris ingress.

Corrosion-Resistant: Anodized aluminum + zinc-plated steel components withstand salt spray (passed 500hr ASTM B117 testing).

10–60 inches with ±0.5mm tolerance.









Normal working temperature range: - 45 ℃~+65 ℃

1. We can customize the length/special hole position

2. One-way, two-way, forward and backward expansion

3. Sand and dust prevention design

4. Limit function

5. End stop and baffle

6. Special operating temperature
